Rhombus Embossed Aluminium Sheet Plate
Alloy: AA1050, AA1060, AA1100, AA3003, AA3004, AA3005, AA3104, AA3105, AA5005, AA5052, AA5754
Temper:O, H12, H14, H22, H24, H32, H34, H114, H194
Thickness: 0.2-5.0mm
Size: (L:900-8000mm)*(W:900-1550mm)
Description
What is Rhombus Embossed Aluminium Sheet Plate Coil

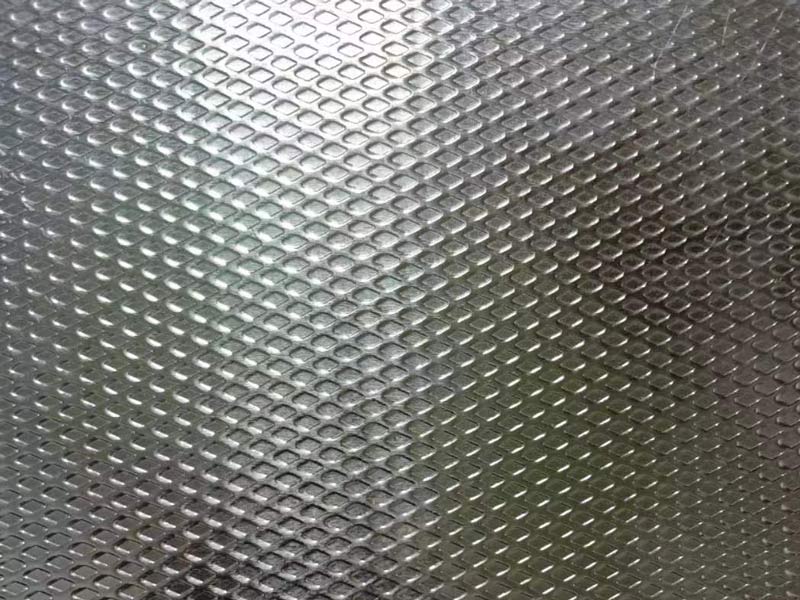

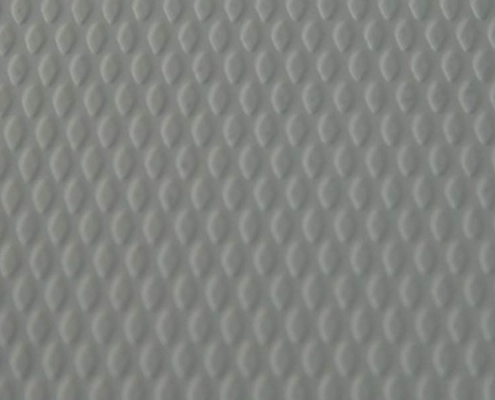

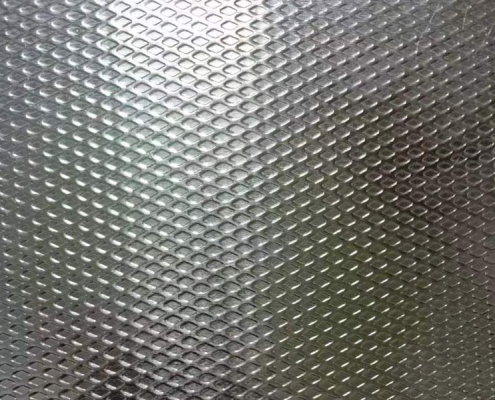

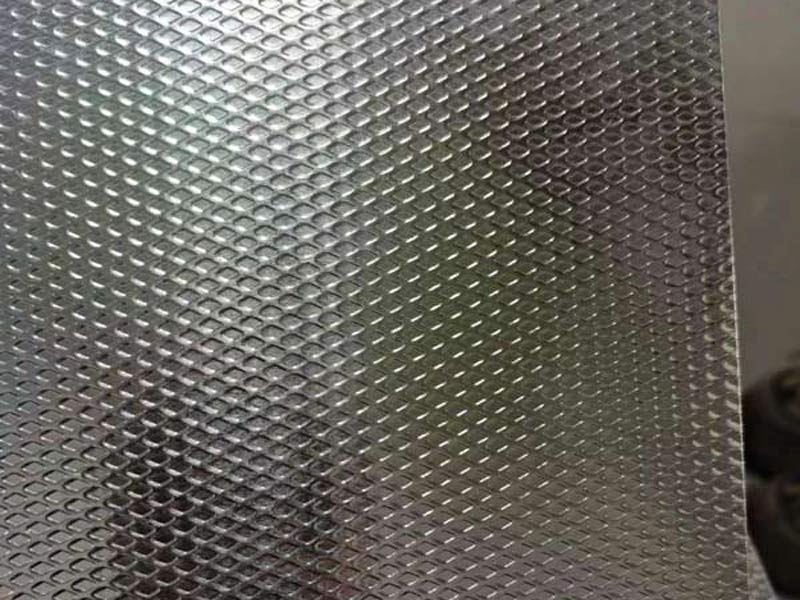

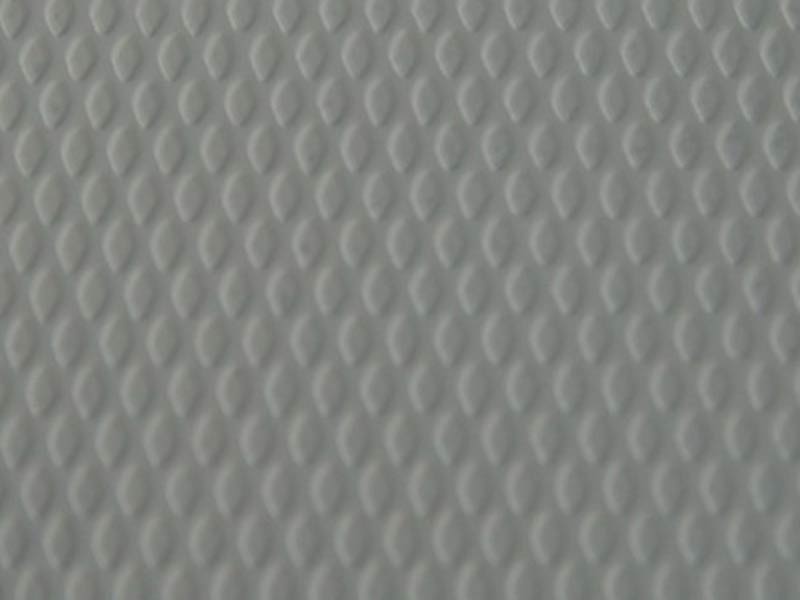

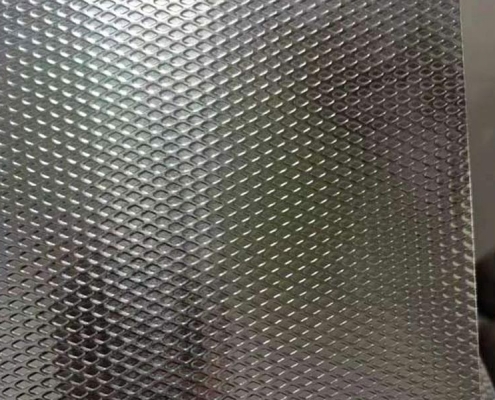

Rhombus-embossed aluminum sheet coil features a Rhombus-shaped parallelogram pattern on its surface. The diamond pattern is available in large and small sizes. The thickness ranges from 0.1 to 1.0 mm, and the width ranges from 500 to 1500 mm.
The embossed surface of Rhombus-embossed aluminum sheet coil increases the overall surface area of the aluminum sheet, enhancing its adhesion in applications such as coatings and paints.
Common Alloy Materials for Rhombus-embossed Aluminum Sheet Coil
Aluminum alloy grades used for Rhombus-embossed aluminum sheet include 1050, 106, 1070, 1100, 3003, 3004, 3005, 5005, and 5052.
1050: High-purity aluminum with excellent corrosion resistance and thermal conductivity.
1060: Slightly stronger than 1050, suitable for a variety of applications. 1100: Offers good workability and corrosion resistance.
3003 and 3004: Suitable for applications requiring medium strength and good corrosion resistance.
5005 and 5052: Alloys with higher strength and good formability, suitable for a variety of industrial applications.
| Alloy | Temper | Remarks | Thickness | Surface Finish | Pattern Height | Pattern Length |
| 1xxxx: 1050, 1060, 1100 | O, H114, H194 | Temper H12, H14, H22, H24, H32 and H34, | 1.0-5.0mm | Bright finish, Mill finish | 1.0mm, +/-0.4mm | 33mm, +/-2.0mm |
| 3xxx: 3003, 3004, 3005, 3104, 3105 | 1.2-5.0mm | |||||
| 5xxx: 5005, 5052, 5754 | O, H114 | 1.5-5.0mm |
Chemical Composition Of Rhombus Embossed Aluminum Sheet Coil
Chemical Composition conforms to Chinese, American and European standard specification (For Reference) of aluminium chequer plate sheets.
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others:Each | Others:Total | Al:Min. |
| 1050 | 0.25 | 0.40 | 0.05 | 0.05 | 0.05 | – | 0.05 | 0.05 | 0.03 | – | 99.5 |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | – | 0.05 | 0.03 | 0.03 | – | 99.6 |
| 1100 | 0.95 Si + Fe | 0.05-0.2 | 0.05 | – | – | 0.10 | – | 0.05 | 0.15 | 99.0 | |
| 3003 | 0.60 | 0.70 | 0.05-0.2 | 1.0-1.5 | – | – | 0.25 | 0.15 | 0.05 | 0.15 | remainder |
| 3105 | 0.60 | 0.70 | 0.03 | 0.3-0.8 | 0.2-0.8 | 0.20 | 0.40 | 0.10 | 0.05 | 0.15 | remainder |
| 5052 | 0.25 | 0.40 | 0.10 | 0.10 | 2.2-2.8 | 0.15-0.35 | 0.10 | – | 0.05 | 0.15 | remainder |
| 5754 | 0.40 | 0.40 | 0.10 | 0.50 | 2.6-3.6 | 0.30 | 0.20 | 0.15 | 0.05 | 0.15 | remainder |
Rhombus Embossed Aluminum Coil Applications
Rhombus embossed aluminum sheet coils are widely used in refrigerators, solar heat reflectors, decorative aluminum products, air conditioners, and other applications.
Home Appliance Industry: Used in refrigerator housings and internal structures, they offer excellent corrosion resistance and aesthetics.
Solar heat reflectors: Utilize aluminum’s high reflectivity to improve energy efficiency.
Air Conditioning Equipment: Used in air conditioner housings and internal components, they provide excellent heat dissipation.
Architectural Decoration: Used in flooring, ceilings, and wall decoration, enhancing both aesthetics and practicality.
Automotive Industry: Many car floors utilize diamond embossed aluminum sheet for improved wear resistance and aesthetics.
Packaging and Piping: Used in packaging pipes and other products, providing protection and enhancing aesthetics.
Rhombus embossed aluminum sheet, as a decorative aluminum sheet, is not only beautiful but also highly practical. Its unique diamond texture makes it widely used in industries such as interior design, furniture manufacturing, and luggage design. Whether in commercial spaces or homes, rhombus embossed aluminum sheet adds a modern and unique touch.
Production Equipment
Production capacity:Xienuo Enterprise has a total of 25 state-of-the-art cold rolling, cast rolling, hot continuous rolling, foil rolling and extrusion production lines, including 6 casting and rolling lines, 4 continuous casting and rolling lines, and 3 coating production lines. 2 anodizing production lines, and more than 300 sets of production equipment such as rewinding machines, rounding machines, and slitting machines.
It can achieve an annual production capacity of 100,000 tons of aluminum plates, 100,000 tons of aluminum coils, 80,000 tons of aluminum foils, 50,000 tons of aluminum circle discs, and 50,000 tons of other aluminum products.
